Ultimate OX™ Kit w/ BuckRigger™ - 50061K33

SKU:

50061K33

Description:

Orders for this product usually ship in 7-14 business days.

The Ultimate Ox™ Kit with BuckRigger™ is a complete rigging system that puts numerous rigging options at the user’s fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™. For example, the user can create a 4-to-1 mechanical advantage on up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage on up to a 35’ working height.

The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.

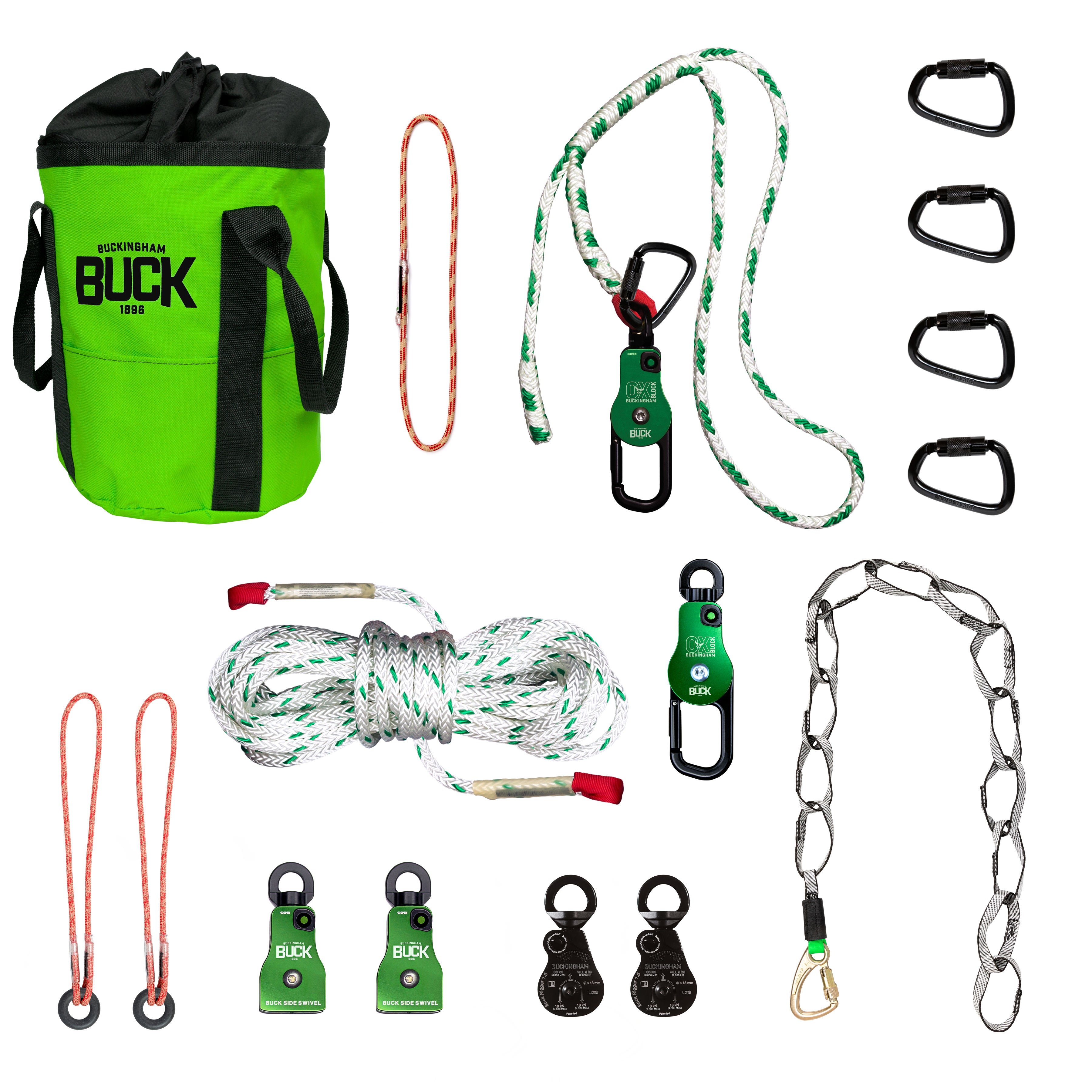

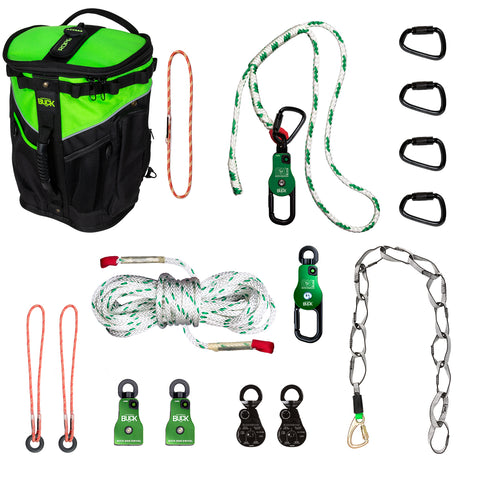

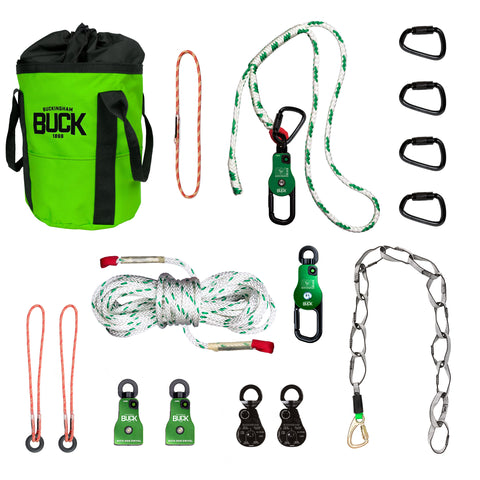

The Ultimate Ox™ Kit with BuckRigger™ contains:

OX BLOCK™ Swivel Eye & Carabiner w/4′ Sling – 50061A-4 (Qty: 1)
OX BLOCK™ – 50061 (Qty: 1)
Buck Side Swivel Single Sheath – 50071B1 (Qty: 2)
Single Sheave BuckRigger™ – 5007R1 (QTY: 2)
Rope Bag – 4374 (Qty: 1)
Rope (250′) – 39SAM27Q2-250 (Qty: 1)
Steel Double Action Carabiner – 5005S5 (Qty: 4)
Prusik Loop with Aluminum Ring – P9J8V- M-+34 (Qty: 2)
8mm Warpspeed 16” Endless Loop - P9C8V-10-16S (QTY: 1)
BuckLink™ Sling – 3903S-6 (Qty: 1)

Instructions & Warnings:

OX BLOCK™ Instructions & Warnings

Ox Handline Inspection Instructions

P7J & P9J Series Prusik Loop Instructions & Warnings

Product Specifications:

Ultimate OX™ Kit with BuckRigger™
Product Number:	50061A-4
Product Name:	OX BLOCK™ HANDLINE ASSEMBLY
Material:	Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3), Steel Hook (2406)
Length:	4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ snap (5005S3)
Width:	5/8″ Rope, 1.99″ OX Block (50061), 3.07″ snap (5005S3)
Weight Rating:	5,000 lbs.
Weight:	4.25 lbs.
Breaking Strength:	Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs.
OX Block Standards:	ASME B30 Compliant

Product Number:	50061
Product Name:	OX Block™
Material:	Lightweight Aluminum
Length:	10.5″
Width:	2″
Gate Opening Capacity:	1.5″
Weight:	2.15″
Hook to Eye:
MBS:	6,000 lbs.
WLL:	1,500 LBF.
Sheave to Eye:
MBS:	10,000 lbs.
WLL:	2,500 LBF>

Product Number:	50071B1
Product Name:	BUCK SIDE SWIVEL™
Length:	7″
Width:	3″
Weight:	1.6 lbs.
Material:	Aluminum
Diameter of Eye:	Swivel Eye – 1″
Breaking Strength:	MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN)
Other:	Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm)

Product Number:	5007R1
Weight:	9.2 oz
Height:	5.3″ (135mm)
Width:	2.5″ (63mm)
Thickness:	1.2″ (30mm)
Material:	Aluminum
Pulley Size:	1.5″ (38mm)
Max Rope Diameter:	1/2″ (13mm)
Breaking Strength:	8000 lbf (36kN)
Weight Rating:	WLL – 2000 lbf (8kN)

Product Number:	4374
Product Name:	LARGE ROPEPRO™ DELUXE BAG BY BUCKINGHAM INTERNATIONAL
Height:	16″
Width:	14″
Depth:	16″
Weight:	3.2 lbs.
Number of Pockets:	6
Outside Pockets:	6
Inside Pockets:	0
Material:	Water Resistant Canvas
2 Way Snap:	No
Rain Flap:	Water-Resistant
Back Straps / Shoulder Straps:	Yes / Optional Back Pack Attachment – 4375
Closure Tab:	Zipper
Bottom Material:	Water-Resistant Canvas
Wheels:	No
Magnet:	No

Product Number:	5005S5
Product Name:	Steel Double Action Rigging Carabiner
Option Number:	N/A
Length:	4.68″
Width:	3.07″
Weight:	10.5 oz
Material:	Alloy Steel
Diameter of Eye:	No Eye
Gate Opening Capacity:	0.94″
Gate Strength:	3,600 lbs.
Breaking Strength:	11,240 lbs. (50KN)
Standards Met:	CSA Z259.12 / ANSI Z359.12
Other:	Double Action (2)

Product Number:	P9J8V-+M-34
Product Name:	5/16″ PRUSIK LOOP WITH AN ALUMINUM RING
Material:	Warpspeed Red Rope
Prusik Type:	Prusik w/ Aluminum Ring
Rope Size:	5/16″
Length:	34″
Max Weight Capacity:	350 lbs when fully equipped
Standards:	ANSI Z133
Weight:	0.3 lbs.

Product Number:	P9C8V-10-16S
Product Name:	8MM WARPSPEED 16″ ENDLESS LOOP
Material:	8MM DYNEEMA ROPE
Prusik Type:	Endless Loop
Rope Size:	8MM
Length:	16″
MBS:	5,000 LBF
Weight:	.09 lbs.

Product Number:	3903S-6
Product Name:	BuckLink™ Sling
Overall Length:	6′
Width:	3/4″ Spectra
Connector Material:	N/A
Material Type:	Spectra
Weight:	1 lb.
User Capacity:	5,000 lbs. individual rated loops
Product Type:	Sling
Standards:	EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap).

Product Number:	39SAM27Q2-250
Product Name:	OX Handline
Length:	250′
Width:	1/2″
Stitched Eyes:	Yes (2) w/ nylon tubing
