Ultimate OX™ Kit w/ BuckLink™ Slings - 50061K31

SKU:

50061K31

Description:

The Ultimate OX™ Kit w/ BuckLink™ Slings is a complete rigging system that puts numerous rigging options at the user’s fingertips. It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the Ox Block®. For example, the user can create a 4-to-1 mechanical advantage up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage up to a 35’ working height.

The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.

*Usually ships within 7 to 14 business days.

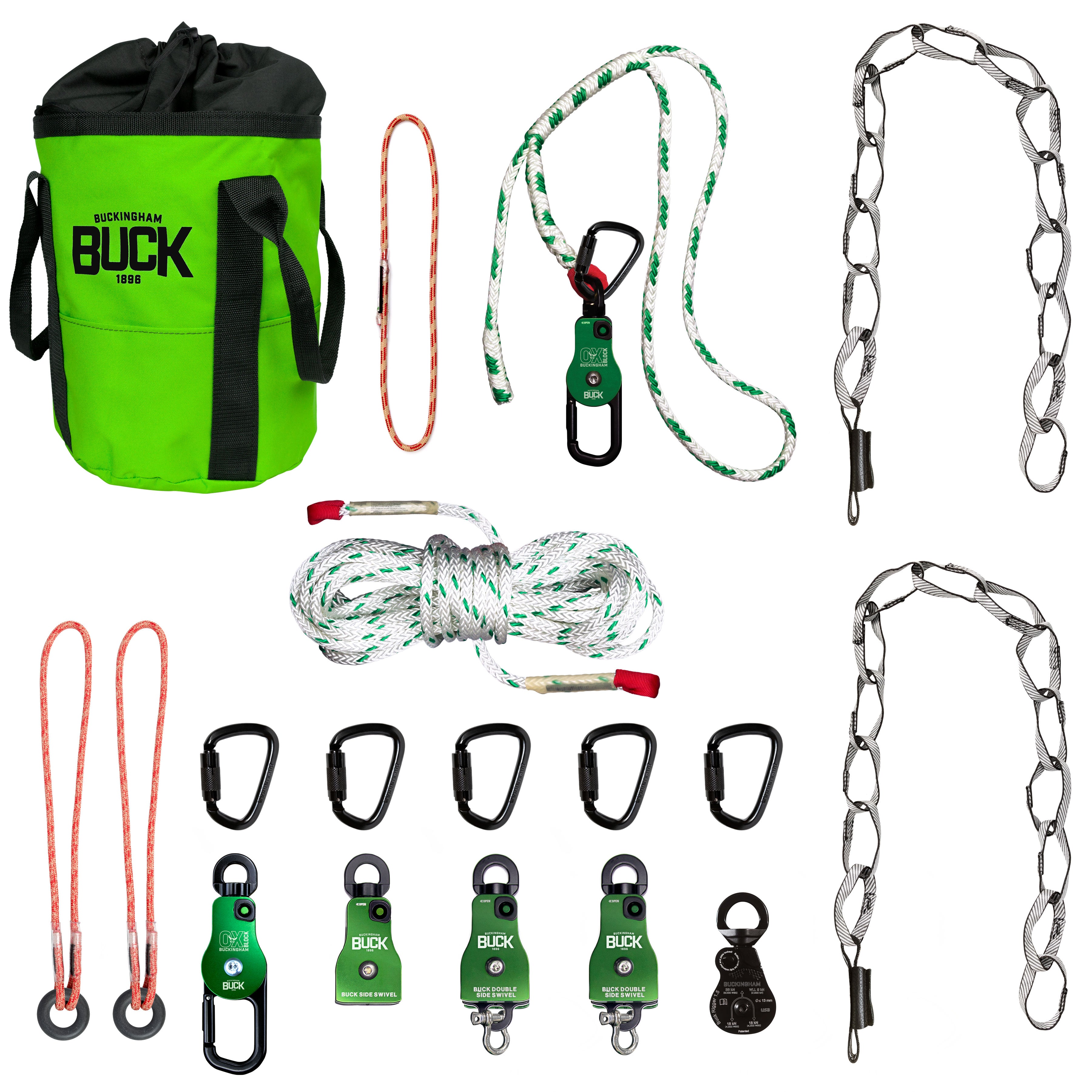

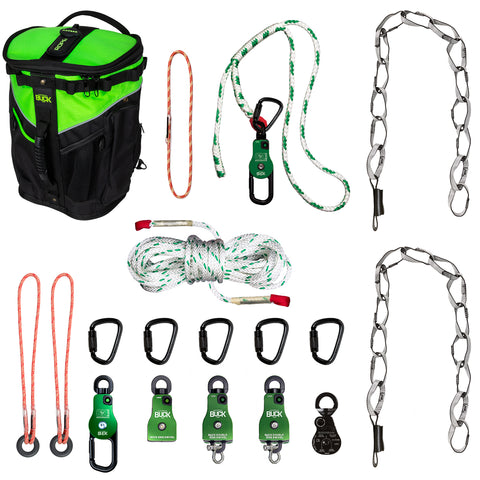

Ultimate OX™ Kit w/ BuckLink™ Slings contains:

- OX BLOCK™ Swivel Eye & Carabiner w/4′ Sling – 50061A-4 (Qty: 1)
- OX BLOCK™ – 50061 (Qty: 1)
- Buck Side Swivel Single Sheath – 50071B1 (Qty: 1)
- Buck Side Swivel Double Sheath – 50071B2 (Qty: 2)
- Single Sheave BuckRigger™ – 5007R1 (QTY: 1)
- Rope Bag – 4373 with 400ft version or 4374 with 250ft versions (Qty: 1)
- Rope (250′) – 39SAM27Q2-250 (Qty: 1) or Rope (400′) – 39SAM27Q2-400(Qty: 1)
- Steel Double Action Carabiner – 5005S5 (Qty: 5)
- Prusik Loop with Aluminum Ring – P9J8V-+M-34 (Qty: 2)
- 8mm Warpspeed 16” Endless Loop - P9C8V-10-16S (QTY: 1)

BuckLink™ Sling – 3903SQ2-6 -903S (Qty: 2)

Ultimate OX™ Kit w/ BuckLink™ Slings
Product Number	50061A-4
Product Name	OX BLOCK™ HANDLINE ASSEMBLY
Material	Polyester Rope, Aluminum OX Block (50061), Alloy Steel Snap (5005S3), Steel Hook (2406)
Length	4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ snap (5005S3)
Width	5/8″ Rope, 1.99″ OX Block (50061), 3.07″ snap (5005S3)
Weight Rating	5,000 lbs
Weight	4.25 lbs
Breaking Strength	Snap (5005S3)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs.
Links to Relevant Hardware	50061 OX Block™/ 5005S3 Carabiner
OX Block Standards	ASME B30 Compliant
Made in the USA	Yes

Product Number	50061
Product Name	OX Block™
Material	Lightweight Aluminum
Length	10.5"
Width	2"
Gate Opening Capacity	1.5"
Weight	2.15"
Hook to Eye
MBS	6,000 lbs
WLL	1,500 LBF
Sheave to Eye
MBS	10,000 Lbs
WLL	2,500 LBF
Made in the USA	Yes

Product Number	50071B1
Product Name	BUCK SIDE SWIVEL™
Length	7"
Width	3"
Weight	1.6 lbs
Material	Aluminum
Diameter of Eye	Swivel Eye - 1"
Breaking Strength	MBS – 10000 lbf (44KN) / WLL – 2500 lbf (11KN)
Other	Max Rope Diameter – 5/8″ (16mm) / 5/8″ x 2 1/8″ Sealed Ball Bearing Pulley Thickness – 1.813″ (46mm)
Made in the USA	Yes

Product Number	50071B2
Product Name	Dual Buck Side Swivel
Length	8"
Width	3"
Weight	2.6 lbs
Material	Aluminum
Option Number	N/A
Diameter of Eye	Swivel Eye (upper eye) – 1″ / Becket Eye (lower eye) – 0.8″
Lower Eye Shackle:	Yes
Breaking Strength	MBS 10000 lbf. 44(kn)
Diameter Rope Capacity	5/8″ (16mm)
Other	Double Pulley
Made in the USA	Yes

Product Number:	5007R1
Weight:	9.2 oz
Height:	5.3″ (135mm)
Width:	2.5″ (63mm)
Thickness:	1.2″ (30mm)
Material:	Aluminum
Pulley Size:	1.5″ (38mm)
Max Rope Diameter:	1/2″ (13mm)
Breaking Strength:	8000 lbf. (36kN)
Weight Rating:	WLL – 2000 lbf. (8kN)
Made in the USA	Yes

Product Number:	4373(400 version) or 4374(250 version)
Product Name	ROPEPRO™ DELUXE BAG BY BUCKINGHAM INTERNATIONAL
Height	16"
Width	14"
Depth	16"
Weight	3.2 lbs
Number of Pockets	6
Outside Pockets	6
Inside Pockets	0
Material	Water Resistant Canvas
2 Way Snap	No
Rain Flap	Water-Resistant
Back Straps / Shoulder Straps	Yes / Optional Back Pack Attachment – 4375
Closure Tab	Zipper
Bottom Material	Water-Resistant Canvas
Wheels	No
Magnet	No
Attachment Type	Rope Bag
Bucket Hooks Included	N/A
Bucket Hook Model	N/A
Standards	N/A
Made in the USA	Yes

Product Number:	5005S5
Product Name	Steel Double Action Rigging Carabiner
Option Number	N/A
Length	4.68"
Width	3.07"
Weight	10.5 oz
Material	Alloy Steel
Diameter of Eye	No Eye
Gate Opening Capacity	0.94"
Gate Strength	3,600 lbs.
Breaking Strength	11,240 lbs. (50KN)
Standards Met	CSA Z259.12 / ANSI Z359.12
Other	Double Action (2)
Made in the USA	Yes

Product Number:	P9J8V-+M-34
Product Name	5/16″ PRUSIK LOOP WITH AN ALUMINUM RING
Material	Warpspeed Red Rope
Prusik Type	Prusik w/ Aluminum Ring
Rope Size	5/16"
Length	34"
Max Weight Capacity	350 lbs when fully equipped
Standards	ANSI Z133
Weight	0.3 lbs
Made in the USA	Yes

Product Number:	P9C8V-10-16S
Product Name:	8MM WARPSPEED 16″ ENDLESS LOOP
Material:	8MM DYNEEMA ROPE
Prusik Type:	Endless Loop
Rope Size:	8MM
Length:	16″
MBS:	5,000 LBF
Weight:	.09 lbs
Made In USA?:	Yes

Product Number:	3903SQ2-6
Product Name	BuckLink™ Sling
Overall Length	6
Width	3/4″ Spectra
Connector Material	N/A
Material Type	Spectra
Weight	1 lb.
User Capacity	5,000 lbs. individual rated loops
Product Type	Sling
Standards	EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap).
Links to Relevant Hardware	N/A
Made in the USA	Yes

Product Number:	39SAM27Q2-250 or 39SAM27Q2-400
Product Name:	OX Handline
Length:	250 or 400
Width:	1/2"
Stitched Eyes:	Yes (2) w/ nylon tubing
Made in the USA:	Yes

Total Kit Weight	39 lbs.
