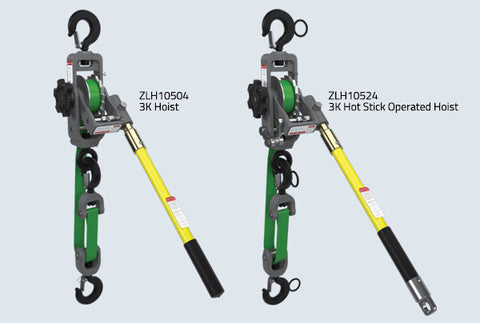

SlingCo 3K Strap Hoist
SKU:
ZLH10504Description:
Orders for this product usually ship in 7-14 business days.
Use the Slingco 3k Strap Hoist to splice, dead end, and sag lines. The Slingco 3k Strap Hoist features an interlocking pawl lever system with dual pawl springs for controlled tightening and releasing of the strap and to ensure the hoist is engaged while in use. The strap hoist complies with ASME B-30-21 standard and all units are tested to 125% of load.
The Slingco 3k Strap Hoist uses pressure die castings for a professional look, consistent material properties, and smooth finish. The strap is hi-viz bright green in color for easy visibility. The strap hoist has three operating positions: lift/pull, lower/release, and freewheeling.
Features and Benefits:
- ASME B-30-21 compliant
- 125% working load tested
- Hi-viz green strap
- Interlocking pawl lever system
- Replacement parts readily available
- Hot stick operable version
Product Specifications:
| SlingCo Part: | ZLH10504 |
| Type: | Standard |
| Single Line Capacity lb (kg): | 1,500 (680) |
| Single Line Lift ft (m): | 10 (3) |
| Single Line Headroom in (mm): | 21 (533) |
| Double Line Capacity lb (kg): | 3,000 (1360) |
| Double Line Lift ft (m) | 5 (1.5) |
| Double Line Headroom in (mm) | 25 (635) |
| Tool Weight lb (kg) | 11.25 (5.1) |
| SlingCo Part: | ZLH10524 |
| Type: | Hot Stick Operated |
| Single Line Capacity lb (kg): | 1,500 (680) |
| Single Line Lift ft (m): | 10 (3) |
| Single Line Headroom in (mm): | 18 (457) |
| Double Line Capacity lb (kg): | 3,000 (1360) |
| Double Line Lift ft (m) | 5 (1.5) |
| Double Line Headroom in (mm) | 25 (635) |
| Tool Weight lb (kg) | 11.5 (5.22) |
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
