SKU:
50063Description:
Orders for this product received by 12:00/Noon EST ship same business day. After 12:00/Noon EST ship next business day.

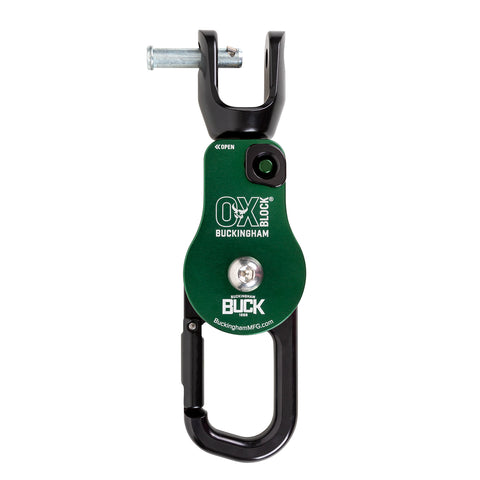

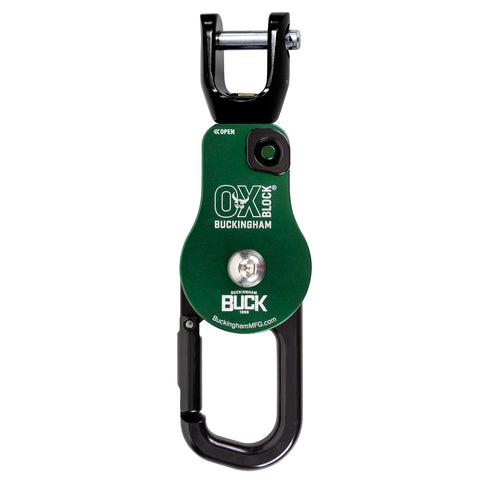

Buckingham’s OX BLOCK™ Clevis Top with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!
Tips/hints: If you want to attach something to the clevis while wearing insulated gloves, you could leave the pin engaged in only one hole so that the clevis is open before you put the gloves on. Then you can push it closed easily while wearing the gloves. The pin can be removed with a screwdriver while wearing the gloves, but it is much easier without them.
Product Specifications:
| Product Number | 50063 |
| Product Name | Ox Clevis Top w/ Buck Pin |
| Material: | Lightweight Aluminum |
| Length: | 10.5" |
| Width: | 2" |
| Gate Opening Capacity: | 1.5" |
| Weight: | 2.15 |
| Adjustable Sling: | No |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| OX Block™ Standards: | ASME B30 Compliant |
| Product Number | 223892R |
| Product Name | Buck Pin |
| Effective Length (between head and plunger) | 1.85" |
| Overall Length | 2.4" |
| Diameter | 1/2" |
| Weight | 2.1 oz |
| Material | Zinc Plated Alloy Steel |
| For Use W/ | Ox Block w/ Clevis Top |
| Standards | Pin itself not tested to a standard. Tensile tested in the Ox clevis to our 10,000 lbf MBS for the Ox Block. |
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
Ox Block Buck Pin Instructions
Buck Pin Retro-Fit Instructions
Ox Block In Use
*To view other Ox Block videos, click the menu in the upper left of the video frame.
Download Links
Ox Block™ Overview
Ox Block™ Training
Ox Block™ Pole Top Rescue Training
Ox Block™ Anchorage Training
Ox Block™ Lift & Lower Training
Tower Rescue Training
Ox Block™ Demonstration at NLC
Pole Top Rescue with Crossarm
Pole Top Rescue with Bare Pole
