SKU:
50062K6-250Description:
Orders for this product usually ship in 7-14 business days.
The OX Block™ Transmission Kit is an OX Block handline assembly that was designed to be specifically used on a transmission pole measuring up to 125’ long. The OX Block™ Transmission Kit is a complete rigging system that puts numerous rigging options at the user’s fingertips.

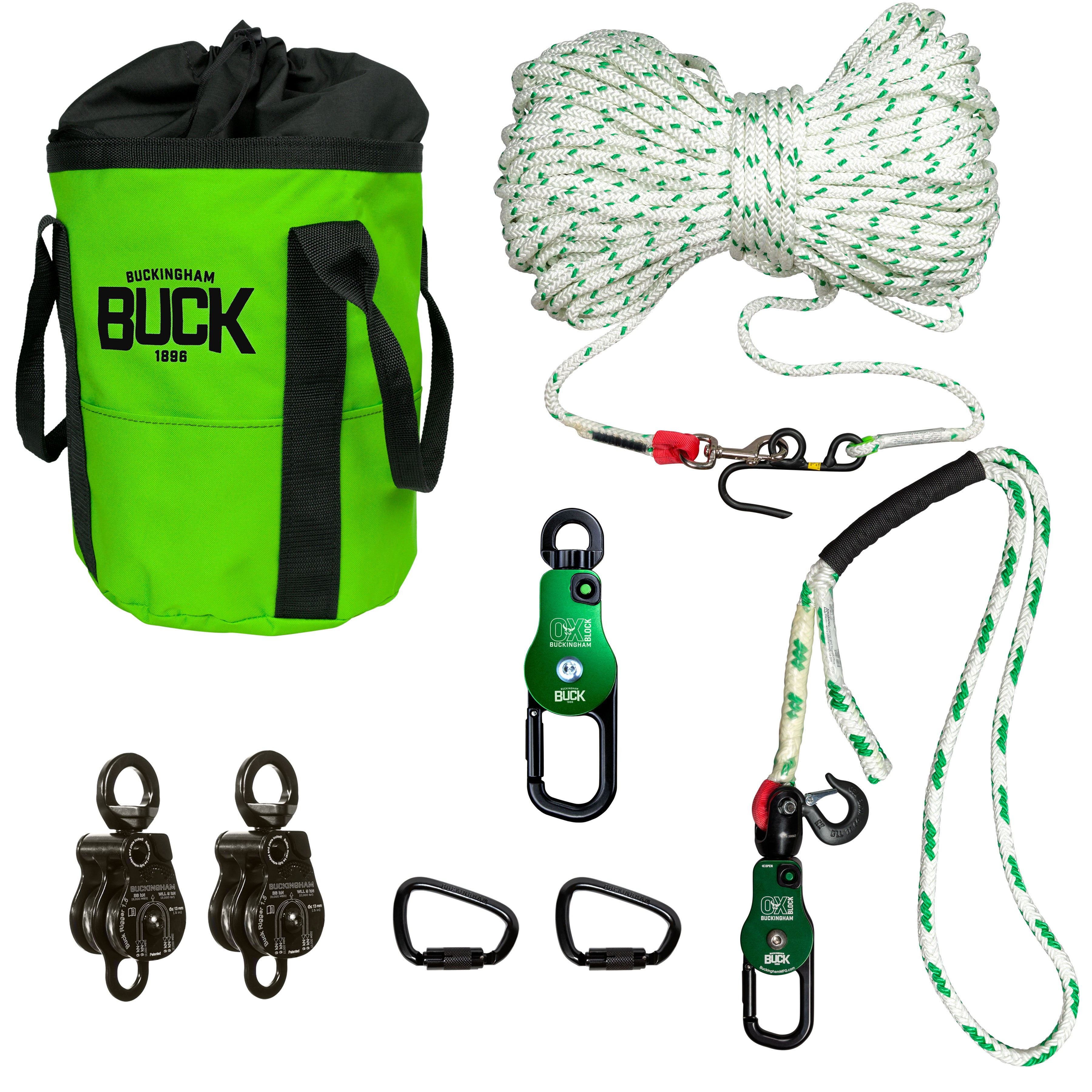

Kit Includes:
- OX Block (1): 50061
- Double Sheave BuckRigger™ (2): 5007R2
- Steel Double Action Rigging Carabiner (2): 5005S5
- RopePro™ Deluxe Bag (1): 4374
- 250’ handline assembly
- OX Block™ w/ adjustable 4’ sling
The OX BLOCK™ is a rope snatch block with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.
- The patented OX BLOCK™ replaces standard handline blocks, parted blocks, and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1, or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- The Ox Block™ is ASME B30 Compliant.
Specifications
| Product Name: | OX Block™ Transmission Kit |
| Product Number: | 50062K6-250 |
| Product Number: | 50062AQA19-4 |
| Product Name: | OX Block™ Shackle Top with 4′ Sling |
| Material: | Lightweight Aluminum |
| Length: | 10.5″ |
| Width: | 2″ |
| Gate Opening Capacity: | 1.5″ |
| Weight: | 9.7lbs. |
| Adjustable Sling: | 4′ |
| Wear Guard: | Yes |
| Wear Guard Material: | Super Fabric |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs. |
| WLL: | 1,500 lbf. |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs. |
| WLL: | 2,500 lbf. |
| OX Block™ Standards: | ASME B30 Compliant |
| Weight: | 14.7 oz |
| Height: | 6.4″ (163mm) |
| Width: | 2.5″ (63mm) |
| Thickness: | 2.25″ (58mm) |
| Pulley Size: | 1.5″ (38mm) |
| Max Rope Diameter: | 1/2″ (13mm) |
| Breaking Strength: | 8000 lbf. (36Kn) |
| Weight Rating: | WLL – 2000 lbf. (8Kn) |
| Product Number: | 5005S5 |
| Product Name: | Steel Double Action Rigging Carabiner |
| Option Number: | N/A |
| Weight: | 10.5 oz |
| Length: | 4.68″ (119mm) |
| Width: | 3.07″ (78mm) |
| Material: | Alloy Steel |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.94″ (24mm) |
| Gate Strength: | 3,600 lbs. |
| Breaking Strength: | 11,240 lbs. (50KN) |
| WLL: | 2,500 lbf. (11kN) |
| Other: | Double Action (2) |
| Product Name: | OX Handline Rope Assembly |
| Product Number: | 39SAM27Q1-250 |
| Material: | Handline Rope / Steel Hardware |
| Handline length: | 250′ |
| Width: | 1/2″ Rope |
| Handline Hook WLL: | 500 lbs. |
| Handline Snap MBS: | 750 lbs. |
| Weight: | 12 lbs. |
| Product Number: | 4374 |
| Product Name: | ROPEPRO™ DELUXE BAG BY BUCKINGHAM International |
| Height: | 16″ |
| Width: | 14″ |
| Depth: | 16″ |
| Weight: | 4 lbs. |
| Number of Pockets: | 7 |
| Outside Pockets: | 7 |
| Inside Pockets: | 0 |
| Material: | Water Resistant Canvas |
| 2 Way Snap: | No |
| Rain Flap: | Water-Resistant |
| Back Straps / Shoulder Straps: | Yes / Optional Back Pack Attachment – 4375 |
| Closure Tab: | Zipper |
| Bottom Material: | Water Resistant Canvas |
| Wheels: | No |
| Magnet: | No |
| Attachment Type: | Rope Bag |
| Bucket Hooks Included: | N/A |
| Bucket Hook Model: | N/A |
| Standards: | N/A |
| Overall Kit Weight: | 29.2 lbs. |
