SKU:
KIT178Description:
Orders for this product usually ship in 7-14 business days.
An Ox Block® Rigging Kit is equipped with multiple Ox™ products to allow for multiple rigging configurations to be used, as well as a rescue with the use of the Ox Hook™.
The man-rated Ox™ Hook can handle light loads, heavy loads, and rescue as well. The OX™ hook has a WLL of 2,500 lbf. (Gate closed) and 1,000 lbf. (Gate open) and features a 3,000 lbf. rated locking gate, making rescue situations more efficient. Finally, the gate can be locked in the open position so it can be used in a more traditional handline hook manner.

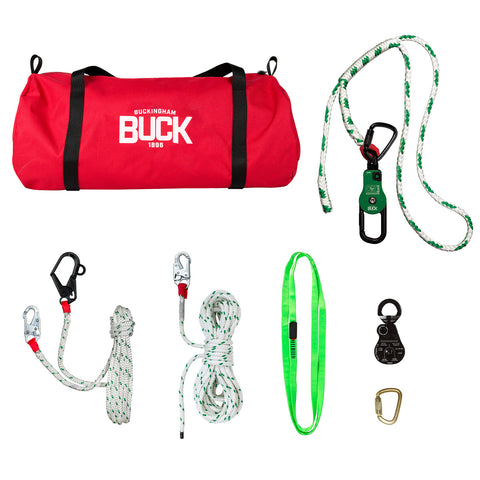

Kit Includes:
- 24” Equipment Bag – 45400R2
- Ox Block® with an Adjustable Sling & Carabiner – 50061A-4
- Ox Hook™ Handline Assembly – 2406S-50
- BuckLoop™ Personal Anchor Sling – 39001EG-24
- Single Sheave BuckRigger™ - 5007R1
- Steel Triple Action Carabiner – 5005S3
- Handline Rope Assembly with Steel Locking Snaphook – 39SAM27Q15-60
Instructions & Warnings:
OX BLOCK™ Instructions & Warnings
Ox Hook and Ox Horn Instructions
Ox Handline Inspection Instructions
Ox Block™ Sling Instructions & Warnings
Product Specifications:
Product Number: | KIT178 |
Product Name: | Ox Block® Rigging Kit |
Product Number: | 45400R2-24 |
Product Name: | Utility Equipment Bag |
Color: | Red |
Diameter: | 9.5″ |
Length: | 24" |
Weight: | 0.5 lbs. |
Number of Pockets: | 0 |
Outside Pockets: | 0 |
Inside Pockets: | 0 |
Pocket Material: | N/A |
Material: | Water Resistant Polyester |
2 Way Snap: | No |
Rain Flap: | No |
Back Straps / Shoulder Straps: | No |
Handles: | 1″ Nylon Web Handles |
Closure Tab: | Zipper |
Bottom Material: | Water Resistant Polyester |
Made in the USA?: | Yes |
Product Number: | 50061A-4 |
Product Name: | OX BLOCK™ HANDLINE ASSEMBLY |
Material: | Polyester Rope, Aluminum OX Block (50061), Steel rigging carabiner (5005S5), Steel Hook (2406) |
Length: | 4′ Sling (Rope), 8.27″ OX Block (50061), 4.68″ carabiner (5005S5) |
Width: | 5/8″ Rope, 1.99″ OX Block (50061), 3.07″ carabiner (5005S3) |
Weight Rating: | 5,000 lbs. |
Weight: | 4.25 lbs. |
Breaking Strength: | Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. |
Links to Relevant Hardware: | 50061 OX Block™ |
5005S5 Carabiner | |
OX Block™ Standards: | ASME B30 Compliant |
Made in the USA?: | Yes |
Product Number: | 2406S-50 |
Product Name: | OX Hook Handline Assembly |
Material: | Handline Rope / Steel Hardware |
Length: | 50 rope |
Width: | 1/2″ rope |
Attachments: | 1706 SNAPHOOK & 2406S OX HOOK |
Weight: | 6.6 lbs. |
Links to Relevant Hardware: | 2406S / 1706 |
Made in the USA?: | Yes |
Product Number: | 39SAM27Q15-60 |
Product Name: | OX Handline Rope Assembly |
Material: | Handline Rope / Steel Hardware |
Length: | 60 rope |
Width: | 1/2″ rope |
Attachments: | 1706 SNAPHOOK |
Weight: | 4.5 lbs. |
Links to Relevant Hardware: | 1706 |
Made in the USA?: | Yes |
Product Name: | Buckloop™ Personal Anchor Sling |
Product Number: | 39001EG-24 |
Lengths: | 24" |
Width: | 1 3/16″ |
Outer Material: | 1 3/16″ Tubing |
Inner Material: | 1” red nylon webbing |
Weight: | 2 oz. |
Wear Indicator: | Yes |
Straight MBS: | MBS: 11,500 lbf. (51 kN) |
Choked MBS: | MBS: 10,500 lbf. (46 kN) |
Basket MBS: | MBS: 18,000 lbf. (80 kN) |
Max User Weight: | 350 lbs. / 500 lbs. for rescue ONLY |
Made in the USA?: | Yes |
Product Number: | 5007R1 |
Product Name: | Single Sheave BuckRigger™ |
Weight: | 9.2 oz |
Height: | 5.3″ (135mm) |
Width: | 2.5″ (63mm) |
Thickness: | 1.2″ (30mm) |
Material: | Aluminum |
Pulley Size: | 1.5″ (38mm) |
Max Rope Diameter: | 1/2″ (13mm) |
Breaking Strength: | 8000 lbf (36kN) |
Weight Rating: | WLL – 2000 lbf (8kN) |
Product Number: | 5005S3 |
Option Number: | N/A |
Weight: | 10.5 oz |
Length: | 4.68″ (119mm) |
Width: | 3.07″ (78mm) |
Material: | Alloy Steel |
Diameter of Eye: | No Eye |
Gate Opening Capacity: | 0.94″ (24mm) |
Gate Strength: | 3600 lbs |
Breaking Strength: | 11240 lbs (50KN) |
Standards Met: | CSA Z259.12 / ANSI Z359.12 |
Other: | Triple Action (3) |
