SKU:
50061K21Description:
The Ultimate Ox Kit is a complete rigging system that puts numerous rigging options at the user’s fingertips. For example, the user can create a 4-to-1 mechanical advantage on up to a 50’ working height. Similarly, the user can create a 5-to-1 mechanical advantage on up to a 35’ working height.
The Ultimate Ox Kit fits in a small, self-contained bag and can be stored in the back of a truck with ease.

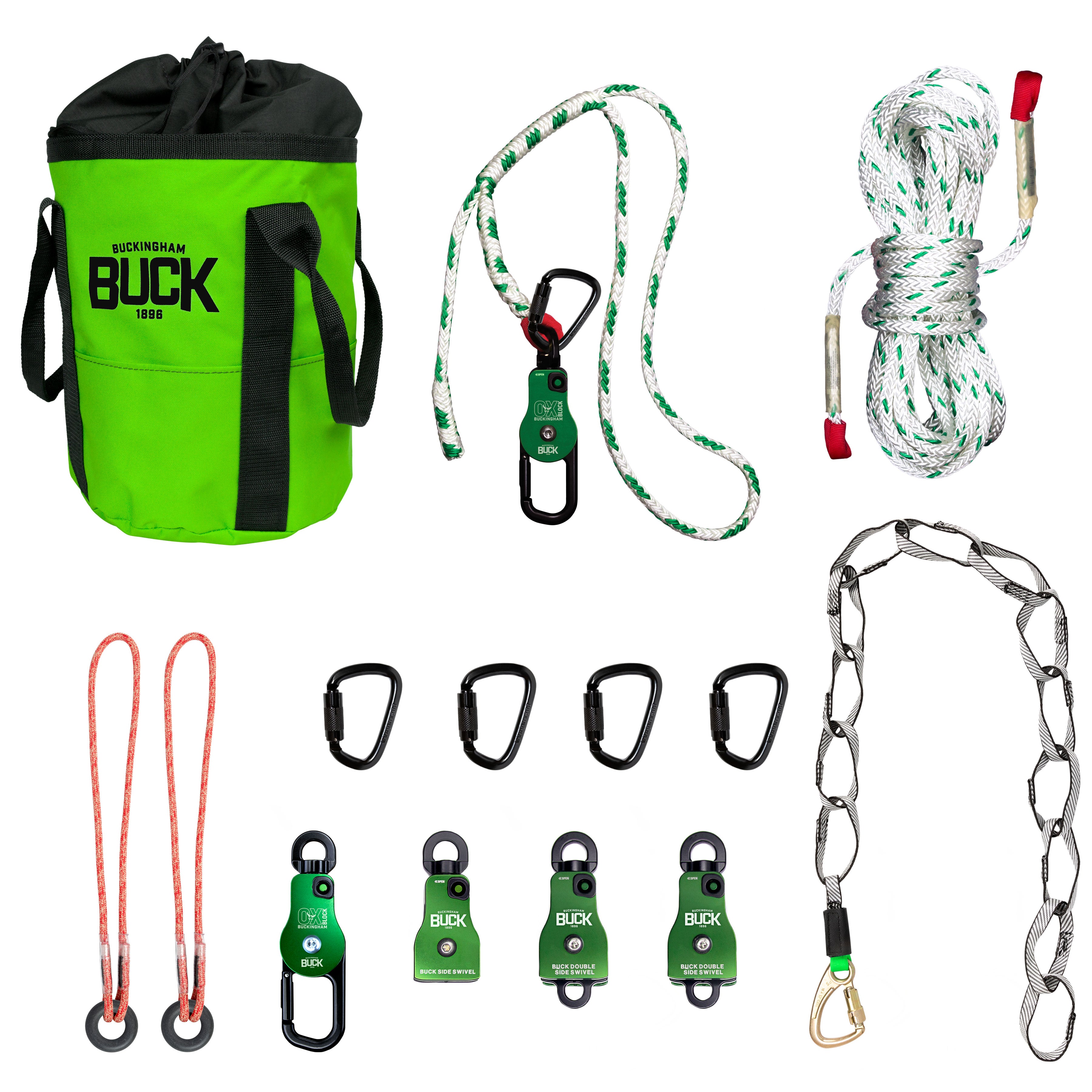

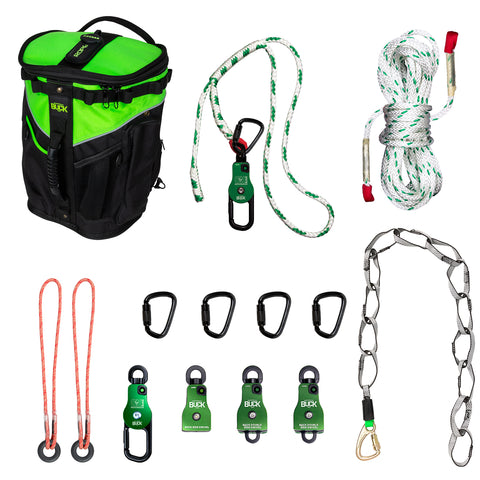

The Ultimate Ox Kit contains:

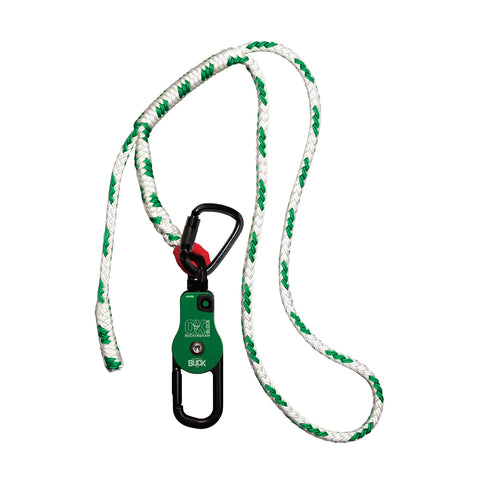

- OX BLOCK™ Swivel Eye & Carabiner w/4 Sling – 50061A-4 (Qty: 1)
- OX BLOCK™ – 50061 (Qty: 1)
- Buck Side Swivel Single Sheath – 50071B1 (Qty: 1)
- Buck Side Swivel Double Sheath – 50071B2 (Qty: 2)
- Rope Bag – 4374 (Qty: 1)
- Rope (250) – 39SAM27Q2-250 (Qty: 1)
- Steel Double Action Carabiner – 5005S5 (Qty: 4)

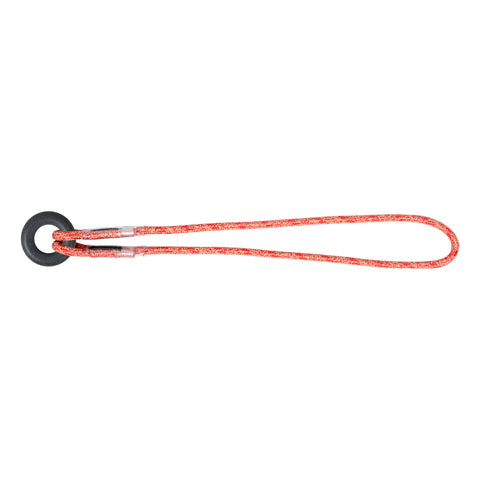

- Prusik Loop with Aluminum Ring – P9J8V- M-34 (Qty: 2)
- BuckLink™ Sling - 3903S-6 (Qty: 1)
As with most of Buckingham Manufacturing’s products, the UOK is completely customizable. Call customer service to customize or email sales@buckinghammfg.com.
*Usually ship within 7 - 14 business days.
The OX BLOCK™ is a rope snatchblock with an integrated friction bar used for:
- Hurtman/self-rescue
- Lowering
- Raising
- Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.
- The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
- Has greater WLLs than blocks of similar size.
- When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
- The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
- The Ox Block™ is ASME B30 Compliant.
50061A-450061, 50071B1, 50071B2, 4374, 5005S3, P9J8V- M-34, 3903S-6
OX BLOCK™ Instructions & Warnings
P7J & P9J Series Prusik Loop Instructions & Warnings
Ox Handline Inspection Instructions
Buck Side Swivel Instructions & Warnings
Rigging Carabiner Instructions
Ox Block™ Sling Instructions & Warnings
Product Specifications
50061A-450061, 50071B1, 50071B2, 4374, 5005S5, P9J8V-+M-34, 3903S-6
| Product Name: | OX BLOCK™ HANDLINE ASSEMBLY |
| Material: | Polyester Rope, Aluminum OX Block (50061), Steel Rigging Carabiner (5005S5) |
| Length: | 4 Sling (Rope), 8.27" OX Block (50061), 4.68" Carabiner (5005S5) |
| Width: | 5/8" Rope, 1.99" OX Block (50061), 3.07" Carabiner (5005S5) |
| Weight Rating: | 5,000 lbs. |
| Weight: | 4.25 lbs. |
| Breaking Strength: | Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. |
| Links to Relevant Hardware: | 50061 OX Block™ |
| 5005S5 Carabiner | |
| OX Block™ Standards: | ASME B30 Compliant |
| Made In USA?: | Yes |
| Product Name: | OX Block™ |
| Material: | Lightweight Aluminum |
| Length: | 10.5" |
| Width: | 2" |
| Gate Opening Capacity: | 1.5" |
| Weight: | 2.15 |
| Connectors: | Four 5005S5 Double Action Carabiners |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| Made In USA?: | Yes |
| Product Name: | Buck Side Swivel™ |
| Weight: | 1.6 lb |
| Length: | 7" (178mm) |
| Width: | 3" (76mm) |
| Material: | Aluminum |
| Diameter of Eye: | Swivel Eye - 1" |
| Breaking Strength: | MBS - 10000 lbf (44KN) / WLL - 2500 lbf (11KN) |
| Other: | Max Rope Diameter - 5/8" (16mm) / 5/8" x 2 1/8" Sealed Ball Bearing Pulley Thickness - 1.813" (46mm) |
| Product Name: | Dual Buck Side Swivel |
| Option Number: | N/A |
| Weight: | 2.6 lbs |
| Length: | 8" |
| Width: | 3" |
| Material: | Aluminum |
| Diameter of Eye: | Swivel Eye (upper eye) - 1" / Becket Eye (lower eye) - 0.8" |
| Breaking Strength: | MBS 10000 lbf 44(kn) |
| Diameter Rope Capacity: | 5/8" (16mm) |
| Other: | Double Pulley |

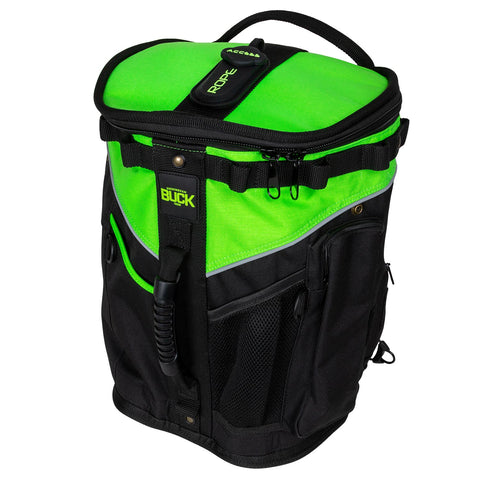

| Product Name: | Large ROPEPRO™ DELUXE BAG BY BUCKINGHAM International |
| Height: | 16" |
| Width: | 14" |
| Depth: | 16" |
| Weight: | 3.2 lbs |
| Number of Pockets: | 6 |
| Outside Pockets: | 6 |
| Inside Pockets: | 0 |
| Material: | Water Resistant Canvas |
| 2 Way Snap: | No |
| Rain Flap: | Water-Resistant |
| Back Straps / Shoulder Straps: | Yes / Optional Back Pack Attachment - 4375 |
| Closure Tab: | Zipper |
| Bottom Material: | Water Resistant Canvas |
| Wheels: | No |
| Magnet: | No |
| Attachment Type: | Rope Bag |
| Bucket Hooks Included: | N/A |
| Bucket Hook Model: | N/A |
| Standards: | N/A |
| Product Name: | Rigging Carabiner |
| Option Number: | N/A |
| Weight: | 10.5 oz |
| Length: | 4.68" (119mm) |
| Width: | 3.07" (78mm) |
| Material: | Alloy Steel |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.94" (24mm) |
| Gate Strength: | 3600 lbs |
| Breaking Strength: | 11240 lbs (50KN) |
| Standards Met: | CSA Z259.12 / ANSI Z359.12 |
| Other: | Double Action (2) |
| Product Name: | 5/16" PRUSIK LOOP WITH AN ALUMINUM RING |
| Material: | Warpspeed Red Rope |
| Prusik Type: | Prusik w/ Aluminum Ring |
| Rope Size: | 5/16" |
| Length: | 34" |
| Max Weight Capacity: | 350 lbs when fully equipped |
| Standards: | ANSI Z133 |
| Weight: | 0.3 lbs |
| Made In USA?: | Yes |
| Product Name: | BuckLink™ Sling |
| Overall Length: | 6ft long |
| Width: | 3/4" Spectra |
| Connector Material: | Steel |
| Material Type: | Spectra |
| Weight: | 1.5 lbs |
| User Weight Capacity: | 5000 lbs individual rated loops |
| Product Type: | Sling |
| Standards: | EN362-2004, ANSI/ASSE Z359.12-2009, CSA Z259.12-01 & CSA Z259.12-11 (1711 Snap). |
| Link to Relevant Hardware: | 1711 Snap |
| Made in USA?: | Yes |
