SKU:
302AFKIT-65Description:
Orders for this product usually ship in 7-14 business days.
The BuckEscape™ kit is an after fall self-rescue system that was designed as an energy-absorbing lanyard that has the capabilities to provide a worker with the ability to perform a self-rescue from a disabled Arial bucket or if the worker is ejected from the bucket and is suspended from their lanyard. The kit also features built-in suspension trauma steps to alleviate pressure during the self-rescue process. Check out the video of the system in use below or click here.
Ideal for troubleshooters and single-man crews.
For one-time use lanyard order 6VV115R2S2.
For descender kit order 302AF-65.

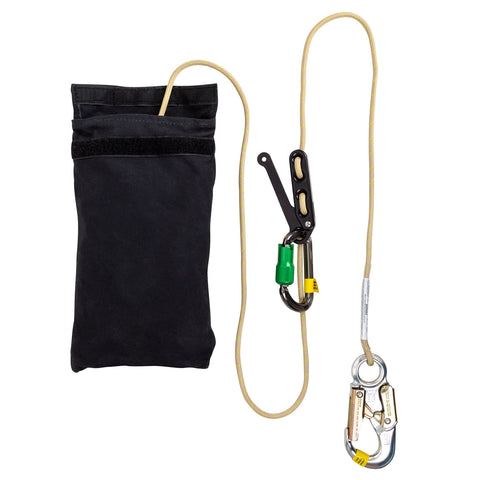

A self-rescue system (302AF-65) unit that features:
- Descender made of light-weight aircraft grade aluminum features an anti-panic braking system, which will stop the descent if the user releases or compresses the handle of the descender all the way, making this the go-to product for all your self-rescue situations.
- 65’ (19.8 m) of compact TVAC descent line measuring only ¼” (6.8mm) and stands up to heat on long descents.
- 3,600 lb. rated gate steel snap hook.
- 3,600 lb. rated gate steel carabiner.
- This product has a user weight limit of 130 to 310 lbs. (59 to 140 kg) when fully equipped.
- Tested to Requirements of ANSI Z359.4
**Note: Bag Material withstands 40cal/cm2 electric arc exposure.

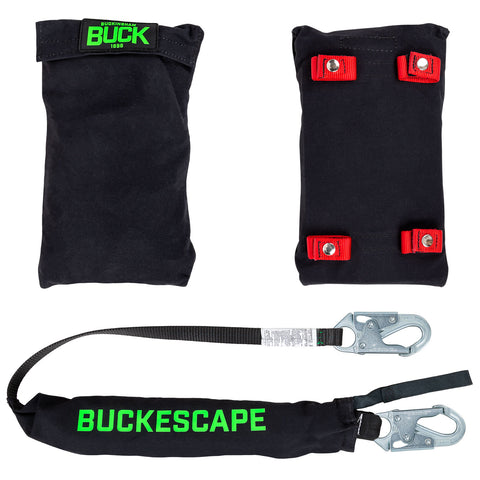

BuckEscape™ Lanyard (6VV115R2S2):
The BuckEscape™ rescue lanyard is a one-time use energy absorbing lanyard with a shock pack that features an aluminum snap hook on each end for use with a full-body harness with a dorsal attachment.
Features:
- The shock pack will deploy the internal contents around 600 lbs. of applied force, but in the case that not enough force was applied a strap is provided that will allow you to deploy the internal contents yourself.
- The internal contents consist of a bent D-ring, 2 relief ladder straps and a relief ladder adjustment strap to ascend yourself into the ladder straps, minimizing suspension trauma.
KIT | |
Part Number: | 302AFKIT-65 |
Product Name: | BuckEscape™ Kit |
Kit Weight: | 7.23 lbs. |
Kit Applicable Standards: | ANSI Z359.4 |
Kit Weight Limit: | 310 lbs. 140 kg. |
Rope Specs: | |
Rope: | 6.8 mm (1/4") TVac Rope, 6.8 mm T-Vac is a high strength specialty cord that features a Technora sheath and nylon core. |
MBS: | 3,619 lb. / 16.1kN |
Rated: | 310 lbs. |
Connector: | 3,600 lb. rated gate steel locking snap hook (1718) |
Descent Device: | |
Length: | 6″ |
Width: | 2″ |
MBS: | 3,035 lb. / 13.5 kN. |
Weight: | 6.0 oz. |
Connector: | 3,600 lb. rated gate aluminum carabiner (5555S4) |
Storage Bag: | |
Part Name: | BuckEscape™ Replacement Bag |
Part Number: | 302B-65 |
Length: | 13" |
Width: | 7" |
Inside Pockets: | 1 |
Internal Tie-off Loop: | Yes |
Bag Material: | 11oz. Navajo FR fabric |
Bag Stiffener: | Yes |
Attachment Type: | Fastener Loops (4) |
Closure Type: | Hook/Loop & Snaps |
Energy Absorbing Lanyard | |
Product Number: | 6VV115R2S2 |
Product Name: | BuckEscape™ Lanyard |
Overall Length: | 5 |
Outer Material: | 1" Nylon and Navajo FR fabric |
Inner Material: | 1" Nylon Web |
Adjustable: | No |
Shock Pack: | Yes |
Shock Pack Length: | 16" |
Protector: | Yes |
Protector Type: | 11 oz Navajo FR Fabric |
Red Wear Center: | Yes |
Primary Attachment Type: | Locking Snaphook |
Primary Attachment Material: | Steel |
Weight: | 3.23 lbs. |
Single Use: | Yes |
Standards: | ANSI Z359.13 & ASTM F887 Electric Arc Flash |
Instructions & Warnings
BuckEscape - After Fall / Disabled Bucket – Self-Rescue System
Click Here to Download (Download)
