SKU:
50063K28Description:
Orders for this product usually ship in 7-14 business days.
The Basic Ox Kit is a cost-effective alternative to the Ultimate Ox Block Kit, giving you everything you need to work, lower and lift up to 40’. Packed with two BuckRigger™ pulleys (single & double sheave) opposed to the Ultimate Ox Kits bigger Buck Side Swivels. The BOK gives you the option of a 2:1, 3:1, & 4:1 pulley system with progress capture giving you numerous rigging options at your fingertips. All this packed in one small, self-contained bag that can be stored in the back of your truck and then easily toted when it’s time to put the BOK to work.

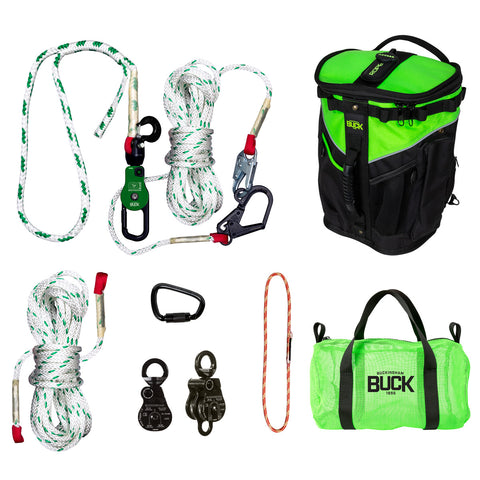

The Basic Ox Kit includes:
For day to day work where a handline is needed:

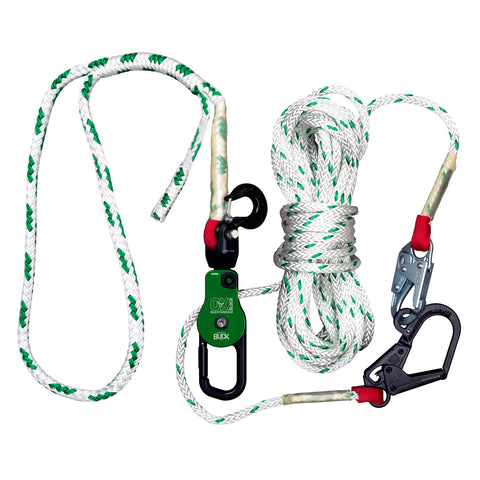

- OX BLOCK™ CLEVIS TOP W/ Buck Pin / OX HOOK™ HANDLINE ASSEMBLY (80’ handline)- 50063K14-4/80 (Qty:1).
When the need for lifting occurs:
- ROPE (200’)- 39SAM27Q2-200 (Qty:1)

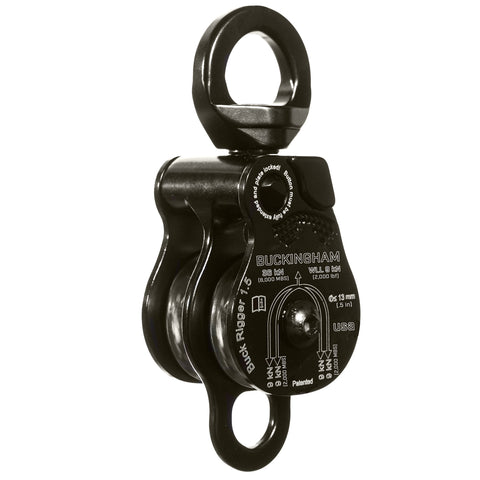

- DOUBLE SHEAVE BUCKRIGGER™- 5007R2 (Qty:1)

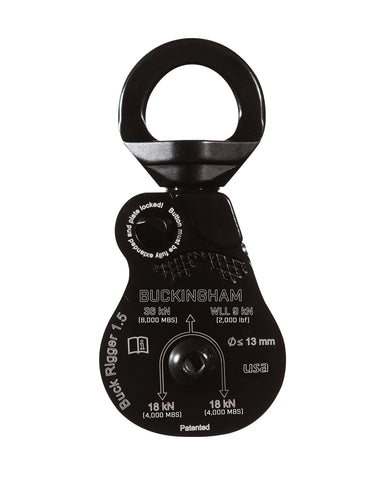

- SINGLE SHEAVE BUCKRIGGER™- 5007R1 (Qty:1)
- 8MM WARPSPEED 16″ ENDLESS LOOP (progress capture)- P9C8V-10-16S (Qty:1)
- STEEL DOUBLE ACTION CARABINER – 5005S5 (Qty:1)
Hardware components packed in a breathable Buck-Viz™ mesh bag:

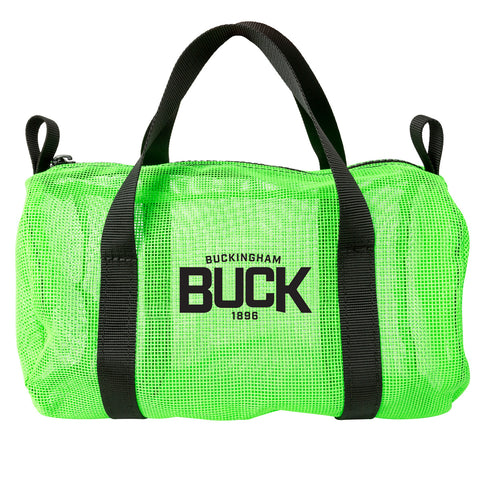

- MESH EQUIPMENT BAG- 45400G10-9

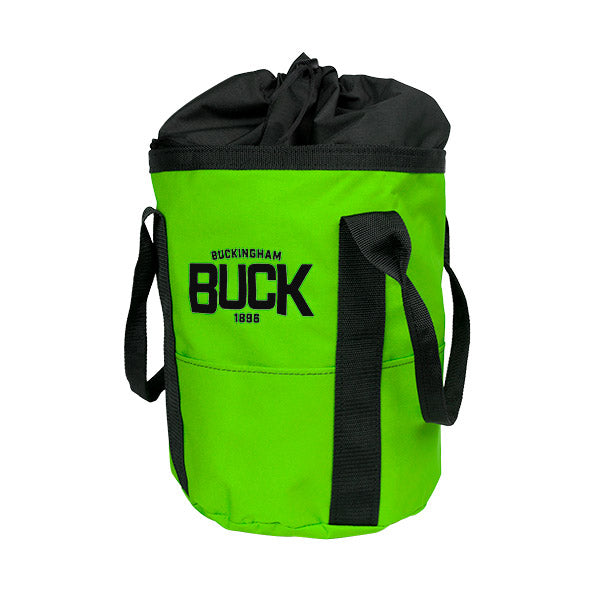

Entire kit packed in a water-resistant & ventilated equipment bag:

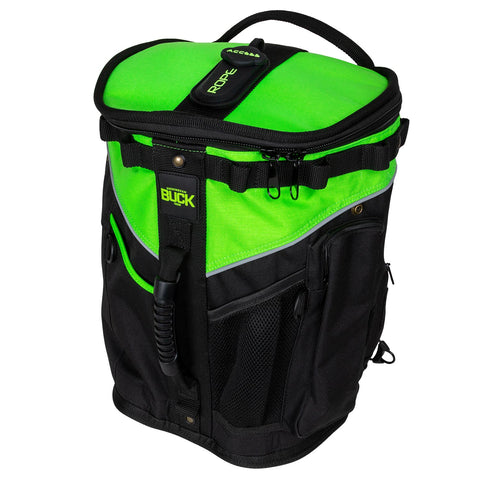

- LARGE ROPEPRO™ DELUXE BAG- 4374
Product Specifications
| Product Number: | 50063K14-4/80 |
| Product Name: | OX BLOCK™ CLEVIS TOP W/ Buck Pin / OX HOOK™ HANDLINE ASSEMBLY |
| Material: | Lightweight Aluminum |
| Length: | 10.5″ |
| Width: | 2″ |
| Gate Opening Capacity: | 1.5″ |
| Weight: | 9.7 lbs. |
| Adjustable Sling: | 4′ x 5/8″ |
| Handline Assembly: | 80′ OX Hook™ |
| Connector: | 1706 Snap |
| HOOK TO EYE: | |
| MBS: | 6,000 lbs |
| WLL: | 1,500 lbf |
| SHEAVE TO EYE: | |
| MBS: | 10,000 lbs |
| WLL: | 2,500 lbf |
| OX Block™ Standards: | ASME B30 Compliant |
| Product Number: | 5007R2 |
| Material: | Aluminum |
| Weight: | 14.7 oz |
| Height: | 6.4″ (163mm) |
| Width: | 2.5″ (63mm) |
| Thickness: | 2.25″ (58mm) |
| Pulley Size: | 1.5″ (38mm) |
| Max Rope Diameter: | 1/2″ (13mm) |
| Breaking Strength: | 8000 lbf (36Kn) |
| Weight Rating: | WLL – 1800 lbf (8Kn) |
| Product Number: | 5007R1 |
| Weight: | 9.2 oz |
| Height: | 5.3″ (135mm) |
| Width: | 2.5″ (63mm) |
| Thickness: | 1.2″ (30mm) |
| Material: | Aluminum |
| Pulley Size: | 1.5″ (38mm) |
| Max Rope Diameter: | 1/2″ (13mm) |
| Breaking Strength: | 8000 lbf (36kN) |
| Weight Rating: | WLL – 1800 lbf (8kN) |
| Product Number: | P9C8V-10-16S |
| Product Name: | 8MM WARPSPEED 16″ ENDLESS LOOP |
| Material: | 8MM DYNEEMA ROPE |
| Prusik Type: | Endless Loop |
| Rope Size: | 8MM |
| Length: | 16″ |
| MBS: | 5,000 LBF |
| Weight: | .09 lbs |
| Product Number: | 5005S3 |
| Option Number: | N/A |
| Weight: | 10.5 oz |
| Length: | 4.68″ (119mm) |
| Width: | 3.07″ (78mm) |
| Material: | Alloy Steel |
| Diameter of Eye: | No Eye |
| Gate Opening Capacity: | 0.94″ (24mm) |
| Gate Strength: | 3600 lbs |
| Breaking Strength: | 11240 lbs (50KN) |
| Standards Met: | CSA Z259.12 / ANSI Z359.12 |
| Other: | Double Action (2) |
| Product Number: | 45400G10-9 |
| Product Name: | Buckingham Mesh Equipment Bag |
| Length: | 9″ |
| Width: | 5″ |
| Material: | Mesh |
| Handles: | Yes |
| Handle Material: | 1″ Nylon Web |
| Closure Type: | Zipper |
| Product Number: | 4373 |
| Product Name: | Large ROPEPRO™ DELUXE BAG BY BUCKINGHAM International |
| Height: | 16″ |
| Width: | 14″ |
| Depth: | 16″ |
| Weight: | 3.2 lbs |
| Number of Pockets: | 6 |
| Outside Pockets: | 6 |
| Inside Pockets: | 0 |
| Material: | Water Resistant Canvas |
| 2 Way Snap: | No |
| Rain Flap: | Water-Resistant |
| Back Straps / Shoulder Straps: | Yes / Optional Back Pack Attachment – 4375 |
| Closure Tab: | Zipper |
| Bottom Material: | Water Resistant Canvas |
OX BLOCK™ Instructions & Warnings
P7C & P9C Series Prusik Loop Instructions & Warnings
OX HOOK™ & OX HORN™ Instructions
Ox Handline Inspection Instructions
Rigging Carabiner Instructions
Ox Block™ Sling Instructions & Warnings
